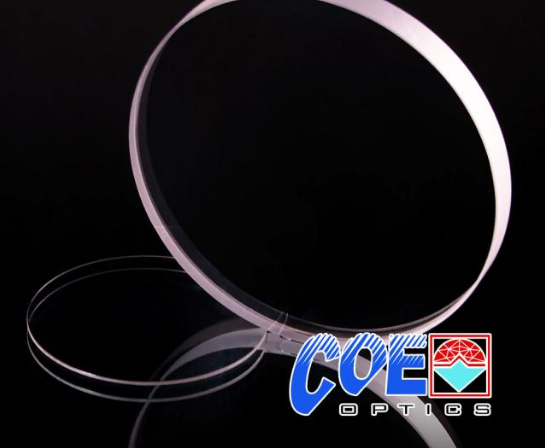

Optical windows, particularly germanium windows play a significant role in optimizing the performance of thermal imaging systems. Their exceptional thermal properties, wide spectral transmission range and low reflectivity make them ideal for various applications where accurate temperature measurements are crucial. By understanding the significance of optical windows and considering the specific requirements of thermal imaging, professional can ensure the success of their imaging projects and achieve reliable and precise results.
Understanding Optical Windows:
Optical windows are transparent components that allow the passage of light while protecting the internal components of an optical system. They act as barriers against environmental factors such as dust, moisture and temperature variations. Optical windows are designed to minimize the impact on image quality and maintain system performance.
Importance of Thermal Imaging:
Thermal imaging has revolutionized various industries, including security, surveillance, aerospace and automotive. It enables the detection of infrared radiation emitted by objects and converts it into a visible image. Accurate and reliable thermal imaging is crucial in detecting anomalies, identifying heat signatures, and ensuring safety in diverse applications.
Advantages of Germanium Windows in Thermal Imaging:
Germanium (Ge) is a popular material choice for optical windows in thermal imaging systems due to its unique properties. Here are some key advantages:
a) Broad Spectral Range:
Germanium has excellent transmission properties in the infrared region, making it ideal for thermal imaging applications. It can effectively transmit wavelengths ranging from 2 to 16 micrometers, encompassing the typical spectral range of thermal imaging detectors.
b) High Refractive Index:
Germanium has a high refractive index, enabling efficient coupling of incident light with thermal imaging detectors. This property enhances the sensitivity and performance of thermal imaging systems, ensuring accurate detection and imaging of thermal signatures.
c) Low Dispersion:
Germanium exhibits low dispersion characteristics, which means it minimally affects the phase and color of the transmitted light. This property is essential for maintaining image quality, preventing distortions and achieving accurate temperature measurements in thermal imaging applications.
d) Good Thermal Conductivity:
Thermal management is crucial in thermal imaging systems to avoid overheating and maintain long-term performance. Germanium possesses a relatively high thermal conductivity, which aids in dissipating heat efficiently from the imaging sensor, ensuring reliable and stable operation.
Design Considerations:
When using Thermal imaging Germanium windows, several design considerations should be taken into account:
a) Anti-Reflection Coatings:
To optimize the transmission of light, anti-reflection coatings can be applied to Germanium windows. These coatings minimize reflections and maximize the amount of light reaching the detector, resulting in enhanced image quality and sensitivity.
b) Mechanical Durability:
Germanium windows should be designed with appropriate thickness and mechanical strength to withstand environmental conditions and protect the internal components of the thermal imaging system for Thermal imaging Germanium windows. Anti-scratch coatings can also be applied to enhance durability.
c) Compatibility with Other Materials:
Germanium windows should be compatible with other optical components in the system, ensuring efficient coupling and minimal losses. Proper material selection and precise manufacturing processes are crucial in achieving compatibility.
Germanium optical windows is an important aspect in enhancing the performance and accuracy of thermal imaging systems. With their broad spectral range, high refractive index, low dispersion and good thermal conductivity, Germanium windows enable reliable and high-quality thermal imaging for a wide range of applications. By understanding the advantages and design considerations associated with Germanium windows, professionals can make informed decisions when implementing thermal imaging procedur
